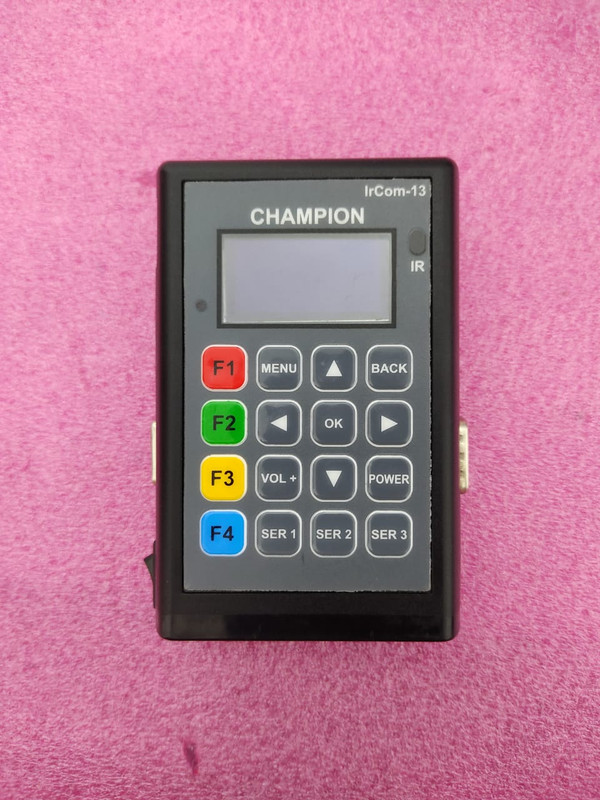

1.3-inch OLED Display
High-resolution display for clear function menus and status information
Built-in Rechargeable Battery
Long-lasting battery with 4 LED status indicators and USB-C charging
16-Button 4x4 Membrane Keyboard
Professional tactile keyboard for easy navigation and input
Multiple Connectivity Options
USB-C, Micro USB, VGA connector, 3-pin sockets, and 9-pin connector
IR Transmitter & Receiver
Dual IR sensors for both sending and receiving infrared signals
Built-in WiFi & Bluetooth
802.11b/g/n WiFi and Bluetooth v4.2 for wireless connectivity
Memory Card Slot
Expandable storage with included 8GB memory card
ESP32-D0WDQ6 Processor
Xtensa dual-core 32-bit LX6 microprocessor up to 240 MHz
Professional Functions
Comprehensive diagnostic and programming capabilities for professional TV service technicians
UART Function
Serial communication with TV motherboards for diagnostics and recovery. Supports console commands, recovery commands, and service shortcuts with selectable baud rates.
- 4800
- 9600
- 14400
- 19200
- 38400
- 57600
- 115200
- 230400
- 250000
- 380400
- 460800
- 500000
- 921600
- 1000000
IR Function
Use IrCom-13 as a universal remote control with built-in database for Sony, TCL, LG, OnePlus, Samsung, and many other brands. Includes service mode access.
User IR Function
Capture, save, and use custom remote controls. Learn any remote control and save it for future use with filename customization.
Ticon I2C Function
Modify VGL/VGH voltages on T-con boards via I2C protocol. Read, adjust, and write voltage parameters directly to the T-con board.
- 1: SW5084 / TPS65175 / SM4053
- 2: TPS65178
- 3: CM508
- 4: SM4080
- 5: RT6923
- 6: ā
- 7: CS902
- 8: CS601 (CSOT ST3151A07-1-XC-3)
- 9: P302-11
- 10: SG2510S
- 11: PT320AT02-2-XC-4 (Y22S 2509)
- 12: NT50330P
- 13: RT6937B
- 14: SM4186 Y16_GH11MB7S4LV0
Ticon SPI Function
Modify VGL/VGH voltages via SPI protocol. Similar functionality to I2C but using SPI communication for compatible T-con boards.
- 1: ST4251D01-3-C-3 (CSOT CSQ12-A0S, CS602)
- 2: ST5461D13-2-C-2 (CS602)
- 3: TD-000M (CS603)
PMIC Programmer
Program Power Management IC parameters. Read, write, and save DC-DC IC parameters with file management capabilities.
- TPS65168
- TPS65175
- TPS65178
- SW5084
- SW50B3
- SM4051
- SM4053
- SM4054
- RT6937
Sony ID Function
Read, write, and save Sony TV panel identification data. Essential for panel replacement procedures and ID backup/restore operations.
25XX Programmer
Program 25-series flash memory ICs. Supports both ISP (In-System Programming) and IC removal methods with comprehensive file management.
24XX Programmer
Program 24-series EEPROM ICs. Read, write, and save operations with support for various EEPROM sizes and types.
eMMC Function
This function allows users to read & write eMMC storage chips. User area: boot1 boot2 ., excsd
USB to TTL
UART bridge functionality connecting IrCom-13 to PC/laptop via micro-USB for remote debugging and data logging.
MMC INIT
Initialize new SD cards for IrCom-13 use. Essential for first-time setup and when installing new memory cards.
Update Function
Update IrCom-13 firmware wirelessly via WiFi. Connect to WiFi, visit the provided URL, and upload new firmware files easily.

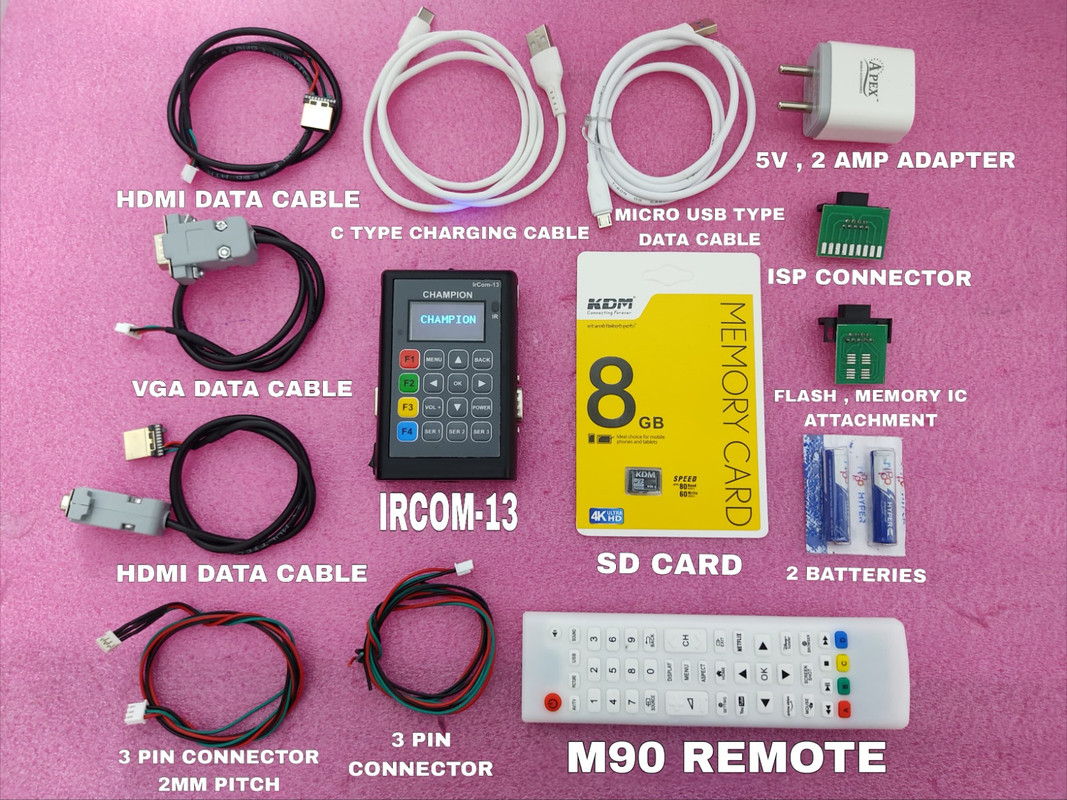

Complete Package Contents
Everything you need for professional TV diagnostics and repair
š± Main Unit
- IrCom-13 device with 1.3-inch OLED display
- Built-in rechargeable battery with charging indicator
- ESP32-D0WDQ6 dual-core processor
- 16-button 4x4 membrane keyboard
š Cables & Connectors
- USB-C charging cable
- Micro USB data cable
- VGA data cable (15-pin connector)
- HDMI data cable (2 types)
- 3-pin data cables (including 2mm pitch)
- Multiple 3-pin data cables
š® Accessories
- China M90 remote control with 2 batteries
- 8GB memory card
- Power adapter for charging
š§ Attachments
- Flash IC & memory IC attachment
- ISP connection attachment
Motherboard Debugging
Serial print monitoring, console entry, and recovery command execution for comprehensive motherboard diagnostics.
Memory Programming
Read, write, and save capabilities for 25XX flash ICs and 24XX series memory with file management.
PMIC & T-con Programming
Program Power Management ICs and T-con boards with voltage adjustment capabilities.
Real-time IR Analysis
Decode IR signals with protocol, command, and address analysis. Identify remote company and key presses.
Universal Remote Control
Create and use as a universal remote with extensive brand database and custom remote learning.
Voltage Modification
Modify VGH & VGL voltages of T-con boards through both I2C and SPI protocols.
Processor
ESP32-D0WDQ6 embedded, Xtensa dual-core 32-bit LX6 microprocessor, up to 240 MHz
Display
1.3-inch OLED screen with high resolution for clear menu navigation
WiFi Connectivity
802.11b/g/n, up to 150 Mbps, frequency range: 2412 ~ 2484 MHz
Bluetooth
v4.2 BR/EDR and Bluetooth LE specification, Class-1, class-2 and class-3 transmitter
Connectivity Ports
USB-C charging, Micro USB data, VGA connector, 3-pin sockets, 9-pin connector
Storage
Memory card slot with included 8GB SD card for firmware and data storage
